Product Details

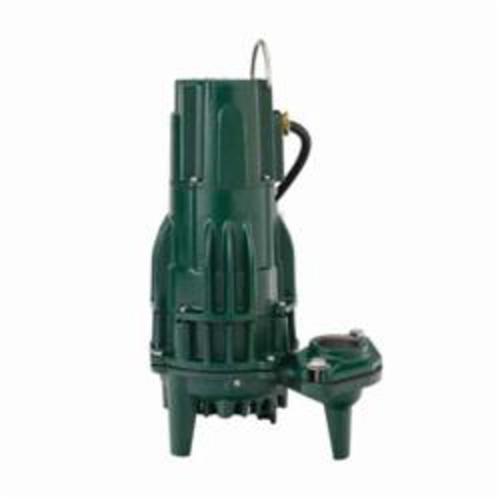

Zoeller® 188-0006 High Head Flow-Mate 180 Single Seal Submersible Effluent Pump, 145 gpm Max Flow, Non-Automatic, 91 ft Max Head, 460 VAC, 3 ph

Price : $1,957.20

List Price : $2,330.00

FD Quick Code: 121126
MPN: 188-0006
UPC: 053514016272
Manufacturer: Zoeller Company
Brand: Zoeller®
Prop65: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Backordered (One or more weeks to deliver. Call or chat to inquire about the availability of this product.)

Description


Heavy duty construction with oversized bearings and a balanced bronze, non-clogging vortex impeller allow this series of pumps to stand up to the highest heads and maximum flows. They are well suited to applications with low pressure pipe (LPP) and enhanced flow STEP systems. Using Zoeller® cool run design, we added fins to these pumps, lowering operating temperatures. The corrosion resistant, epoxy powder coated finish and hermetically sealed, oil-filled motor add up to a long-lasting, trouble-free product.

Amperage Rating     :     4.6 AAutomatic/Non Automatic     :     Non-AutomaticBearing Type     :     BallCord Type     :     4-WireDimensions     :     12-3/4 in W x 19-5/16 in HFrequency Rating     :     60 HzHorsepower     :     1-1/2 hpImpeller Type     :     Bronze Non-Clogging VortexMaterial     :     Cast IronMaximum Flow Rate     :     145 gpmMaximum Head     :     91 ftMotor Speed     :     3450 rpmOutlet Size     :     1-1/2 in NPTPhase     :     3Series     :     High Head Flow-Mate 180Temperature Rating     :     130 deg FType     :     Single SealVoltage Rating     :     460 VAC

  • Non-clogging vortex impeller design, bronze class 88-8-0-4
  • Float-operated, submersible, 2-pole mechanical switch
  • Cast iron switch case, motor, pump housing and base
  • No sheet metal parts to rust or corrode
  • Stainless steel screws, bolts, float rod, handle, guard, arm and seal assembly
  • Oil filled, hermetically-sealed, automatic reset thermal overload protected motor
  • Neoprene square ring and gasket
  • Stainless steel carbon and ceramic rotary shaft seal
  • Effluent or dewatering submersible pump for septic tank, low pressure pipe (LPP) and enhanced flow STEP systems
  • Corrosion resistant, powder coated epoxy
  • Automatic units not recommended for use in effluent systems
  • SAE 1117 carbon steel motor shaft
  • Upper and lower ball bearings running in bath of oil
  • All 180/4180 series pumps pass 3/4 in spherical solids
