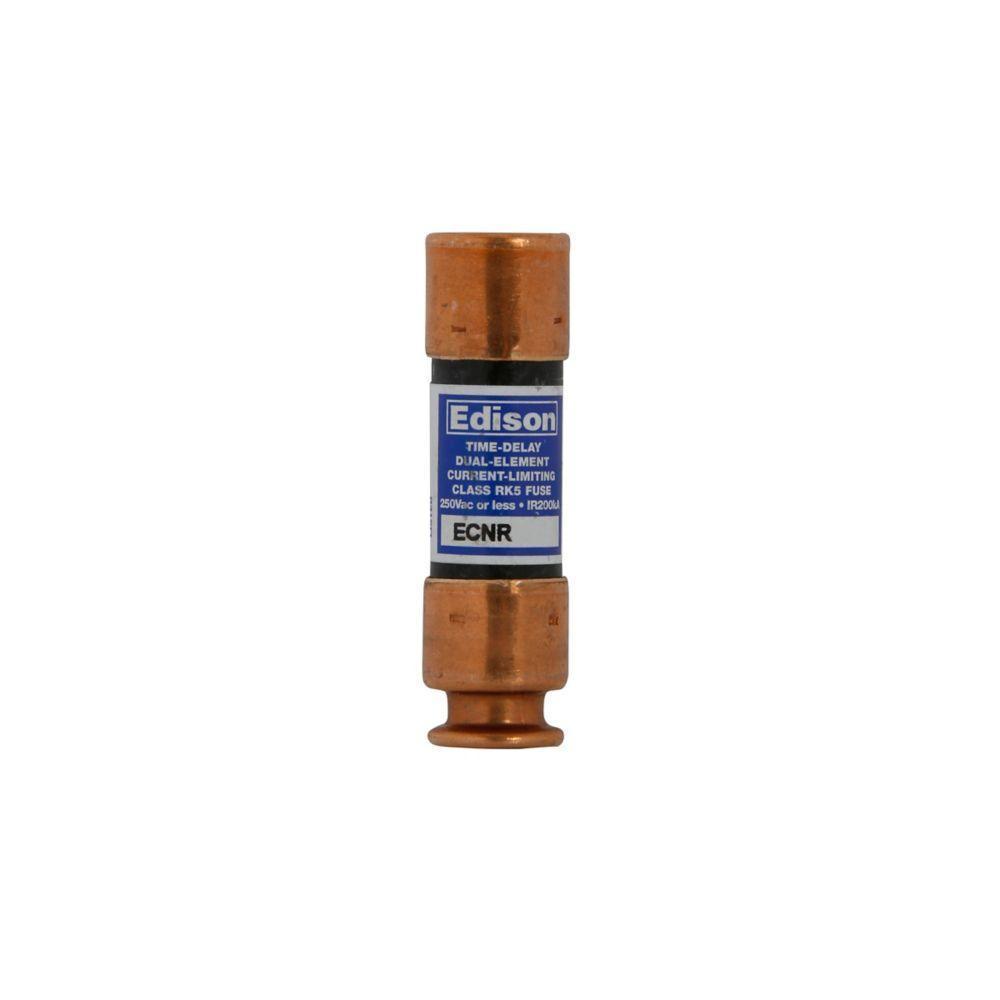

Edison ECNR25 ECNR Current Limiting Time Delay Fuse, 25 A, 250 V AC/125 V DC, 200 kAIC Interrupt, Class: RK5, Cylindrical Body

Price : $13.10

List Price : $15.60

FD Quick Code: 123192
MPN: ECNR25
UPC: 782634507338
Manufacturer: Eaton
Brand: Edison
Prop65: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

In Stock - (Ships same day when order is placed before 2pm PT M-F)

Description


Edison's UL Class RK5 dual-element, time-delay fuses provide economical solutions to overcurrent protectioni. Available in both 250Vac and 600Vac, with 200kA RMS Sym interrupting ratings and sizes ranging from 0 to 600 amp.

Amperage Rating     :     25 ABody Size     :     0.56 in Dia x 2 in LBody Type     :     CylindricalClass     :     RK5Element     :     DualIndicating/Non-Indicating     :     Non-IndicatingInterrupt Rating     :     200 kAICMaterial     :     FiberglassRejection/Non-Rejection     :     RejectionResponse Time     :     10 s at 500%Series     :     ECNRTerminal Type     :     Ferrule EndType     :     Current Limiting Time DelayVoltage Rating     :     250 V AC/125 V DC

  • Provides motor overload, ground fault and short circuit protection
  • Helps protect motors against burnout from 1 ph on 3 ph systems
  • Simplifies and improves blackout prevention (selective co-ordination ratios)
  • Dual element fuses can be applied in circuits subject to temporary motor overloads and surge currents to provide both high performance short circuit and overload protection
  • The overload element provides protection against low level overcurrent of overloads and will hold an overload which is 5X greater than the amperage rating of the fuse for a minimum of 10 s
  • Superior overload and cycling capabilities
  • True dual element construction allows sizing of 125% FLA for motor backup protection
  • Current limiting provides component short circuit protection
  • For all general purpose applications including lighting, heating and other non-inductive loads
  • Tin plated copper brass terminal and zinc plated steel screws
