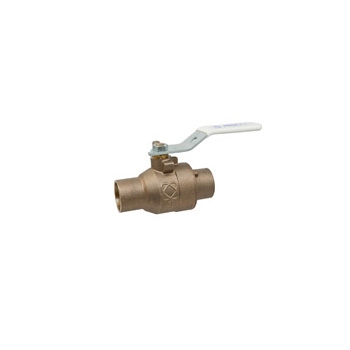

Nibco S-585-80-LF 1-1/4" Two-Piece Lead-Free, Full Port, Solder Ball Valve

Price : $283.73

List Price : $333.80

FD Quick Code: 642512
MPN: NBS58580LF-114
UPC: 39923338587
Manufacturer: NIBCO Inc.
Brand: NIBCO
Prop65: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

In Stock - (Ships same day when order is placed before 2pm PT M-F)

Description


S-585-80-LF Nibco 1-1/4" Two-Piece Lead-Free, Full Port, Solder Ball Valve

The NIBCO ball valve is made of lead-free* Silicon Performance BronzeTM alloy and has achieved the stringent NSF/ANSI 61 section 8 (Commercial Hot) and NSF/ANSI 372 listings. The two-piece valve provides bubble-tight shutoff at 600 psi and is dezincification resistant. The ball valve includes reinforced PTFE seat rings with silicon bronze stem and ball, and is ideal for use in applications that deliver water for human consumption including residential and commercial construction.
  • Valve pressure rating 600 psi 41.4 bar non-shock cold working pressure
  • Max temperature rating 300°F
  • Full port
  • Silicon Performance Bronze body, ball and stem
  • Blowout-proof stem
  • Standard lever handle, optional NIB-SEAL, Locking Lever, Memory Stop, Extended Lever, Round and Wing
  • NIBCO HydraPure lead-free* markings on handle and body
  • Solder end connections
  • Dezincification resistant
  • Lead Free*
  • Conforms to MSS SP-110
  • IAPMO IGC-157
  • NSF/ANSI-61 Section 8 Commercial Hot 180°F (includes Annex F and G)
  • NSF/ANSI-372
  • * Weighted average lead content ≤ 0.25%.

Actuator Type     :     Lever HandleBall Material     :     Silicon BronzeBody Material     :     Silicon BronzeDomestic/Import     :     DomesticEnd Style     :     SolderInlet to Outlet Length     :     4.97 inMedia     :     WaterNominal Size     :     1-1/4 inOrifice Size     :     1-1/2 inPort Type     :     FullPressure Rating     :     600 psiSeries     :     S-585-80-LFSoftgoods Material     :     PTFETemperature Rating     :     300 deg FTop to Inlet Center     :     3.32 inTrim Material     :     Silicon Bronze StemType     :     2-Piece
