Product Details

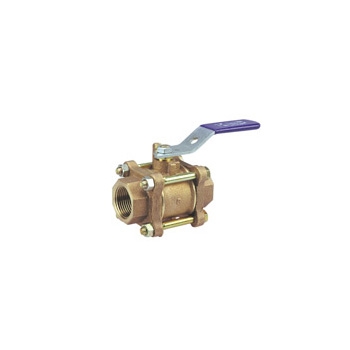

Nibco T-595-Y-LF 3/4" Three-Piece Bronze Ball Valve Full Port with Threaded End Connections

Price : $269.02

List Price : $269.02

FD Quick Code: 706878
MPN: NBT-595-Y-LF-34
UPC: 39923320032
Manufacturer: NIBCO Inc.
Brand: NIBCO
Prop65: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Backordered (One or more weeks to deliver. Call or chat to inquire about the availability of this product.)

Description


T-595-Y-LF Nibco 3/4" Three-Piece Bronze Ball Valve Full Port with Threaded End Connections

The NIBCO® bronze ball valve provides bubble-tight shutoff at 600 psi. The three-piece valve is ideal for hot/cold water, numerous gas applications, compressed air, vacuum service, condenser and chilled water. It may be used for isolation and throttling (half open to full open only). The three-piece valve is repairable in-line.
  • Valve pressure rating 600 psi 41.4 bar non-shock cold working pressure
  • Max temperature rating 400°F
  • Full port
  • Chrome plated brass ball, silicon bronze stem
  • Blowout-proof stem
  • Standard lever handle, optional NIB-SEAL
  • Threaded end connections
  • Dezincification resistant
  • Use in U.S. drinking water applications is prohibited after January 3, 2014
  • Conforms to MSS SP-110

Actuator Type     :     Standard Lever OperatedBall Material     :     Silicon BronzeBody Material     :     Silicon BronzeDomestic/Import     :     DomesticEnd Style     :     FNPTInlet to Outlet Length     :     3 inMedia     :     WaterNominal Size     :     3/4 inOrifice Size     :     3/4 inPort Type     :     FullPressure Rating     :     600 psiSeries     :     T-595-Y-LFSoftgoods Material     :     FKM/PTFE/RPTFETemperature Rating     :     300 deg FTop to Inlet Center     :     2 inTrim Material     :     Silicon Bronze StemType     :     3-Piece
